Name: New Crawler Digger 1 Ton 2ton EPA Engine 1.5 Ton 1.8ton Farm Excavator Mini Excavator Track Hoe Excav Mini
Brand: Henan Hengyou Machinery Equipment Co., Ltd.
Availability: InStock

Home Products Hot-selling product

New Crawler Digger 1 Ton 2ton EPA Engine 1.5 Ton 1.8ton Farm Excavator Mini Excavator Track Hoe Excav Mini

Product Details:

Place of Origin:	Henan, China
Brand Name:	hengyou

Contact Now

Detailed Product Description

Moving Type:	Crawler Excavator	Bucket Capacity:	0.02m3
Maximum Digging Height:	2350mm	Maximum Digging Depth:	1375mm
Machine Weight:	1580 Kg	Max Digging Radius:	2450mm
Rated Speed:	2km/h	Warranty:	1 Year
Hydraulic Cylinder Brand:	Famous Brand	Hydraulic Pump Brand:	Famous Brand
Hydraulic Valve Brand:	Famous Brand	Engine Brand:	KOOP Or CHANGCHAI
UNIQUE SELLING POINT:	High Operating Efficiency	Power:	8.6KW
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	Engine, Motor, Pump, Gearbox	Warranty Of Core Components:	1 Year

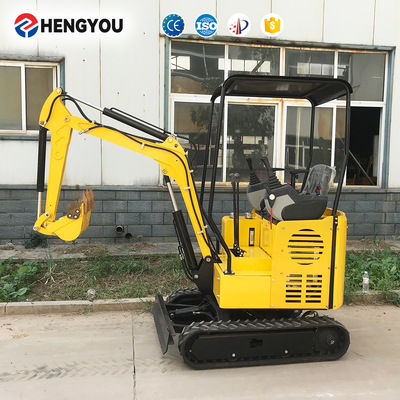

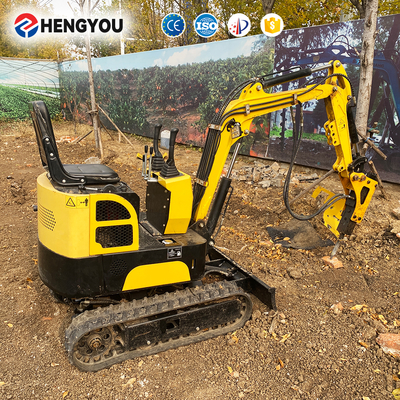

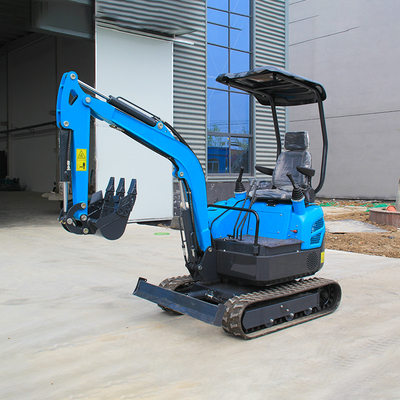

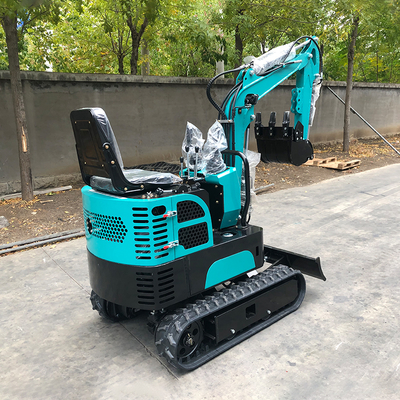

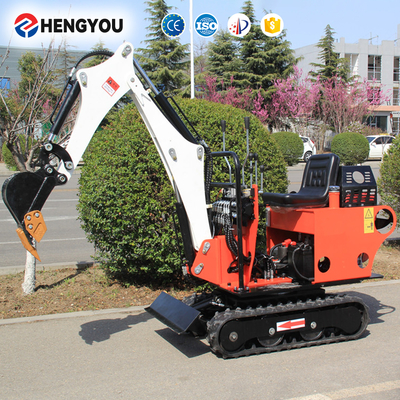

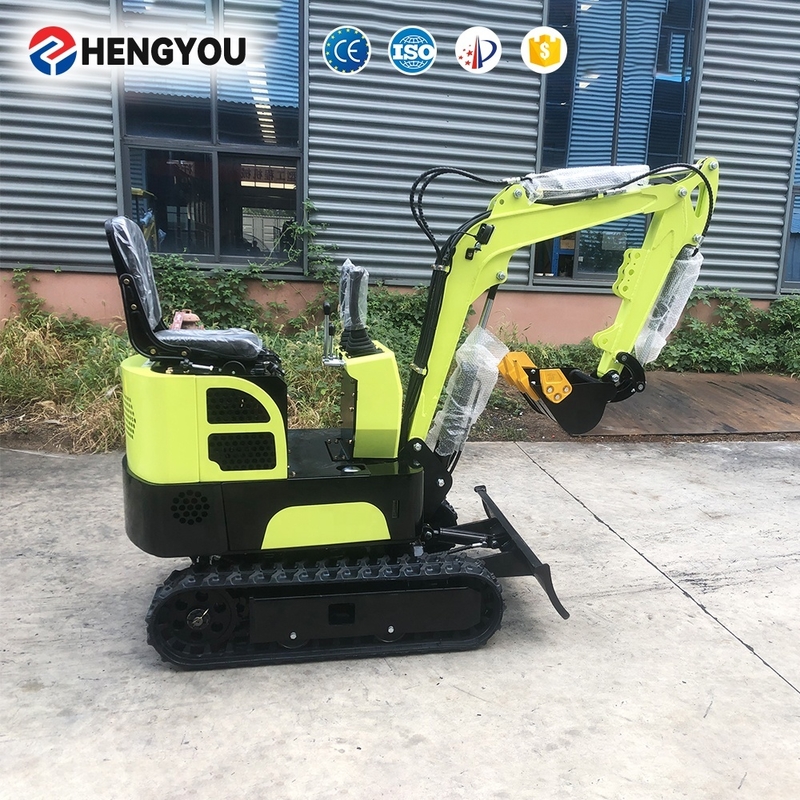

Details Images

Advantage:
1、 Mini crawler excavators have simple structure and compact design ,easy in installation and maintation.

2、Controls are easy to use and operate. The operating instructions in front of the console are simple and easy to use
3、Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
4、 The smallest excavadora is 0.8 ton chinese mini bagger ,it can 360 rotation

Products Description

Product Paramenters

Model	HY-20	Operation weight	1670KG
Engine	Kubota（standard）/yanmar	Power	11.9kw/11.2kw
Bucket capacity	0.05CBM	Rotation speed	9r/min
Overall dimension	3250mm1150mm2300mm	Crawler width	180mm
Swing angle	360°	Climbing gradient	30°
Bulldozer Max depth	190mm	Bulldozer Max raising height	260mm
Simple shed	can add cab	Walking speed	0-3km/h
