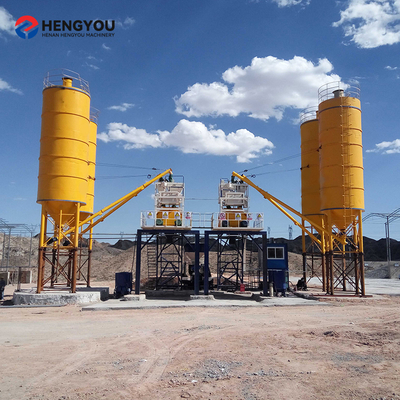

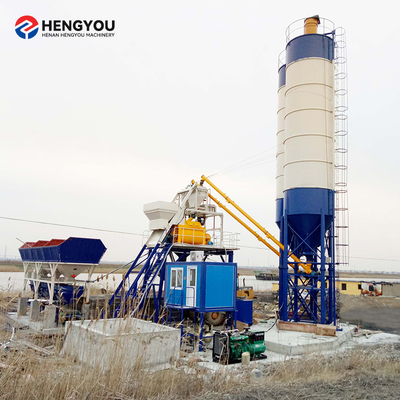

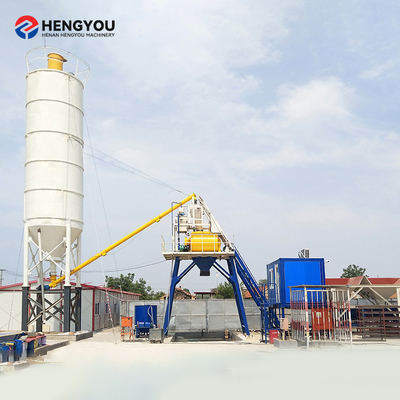

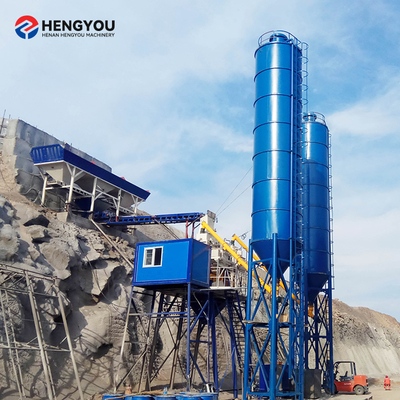

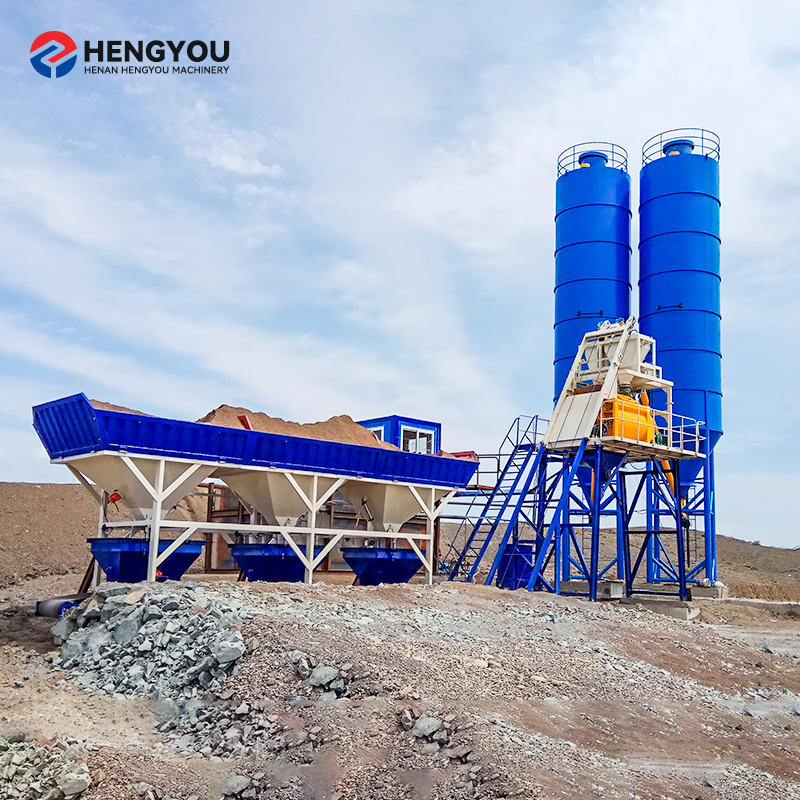

Name: 50m3/h 60m3/h Portable Concrete Batch Plant Fully Automatic Concrete Batching and Mixing Plant
Brand: Henan Hengyou Machinery Equipment Co., Ltd.
Availability: InStock

Home Products Hot-selling product

50m3/h 60m3/h Portable Concrete Batch Plant Fully Automatic Concrete Batching and Mixing Plant

Product Details:

Place of Origin:	Henan, China
Brand Name:	HENGYOU

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Power Type:	Electric
Power:	37kw	Dimension(LWH):	/
Weight:	11420 Kg	Warranty:	1 Year
Machine Type:	Production Line	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	None	Marketing Type:	Ordinary Product
Warranty Of Core Components:	6 Months	Condition:	New

Function

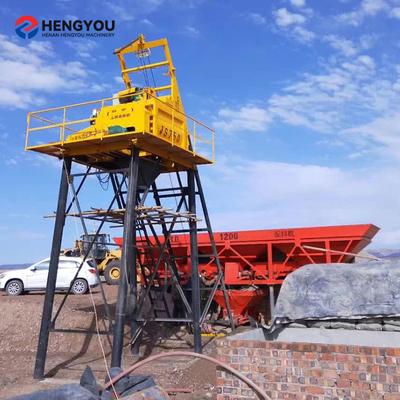

A.High quality concrete mixer,twin shaft type or planetary typeB.Aggregate batcher can be customized
C.Cement silo is optional
D. Aggregate feeding system can adopt skip hopper or belt conveyor

Model	HZS25	HZS35	HZS50	HZS120
Discharging Capacity (L)	500	750	1000	2000
Charging Capacity(L)	800	1200	1600	3200
Maximum Productivity(m³/h)	25	35	50	120
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	3.8~4.5
Number of Species of Aggregate	2~3	2~3	3~4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤120mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	4×100T or 200T
Mixing Cycle Time(s)	72	60	60	60
Total Installed Capacity(kw)	60	78.5	111	210
